Model:YA-ET302D
Overall Size:195 x 66 x (47.5-93)cm
Load Capacity:225kg

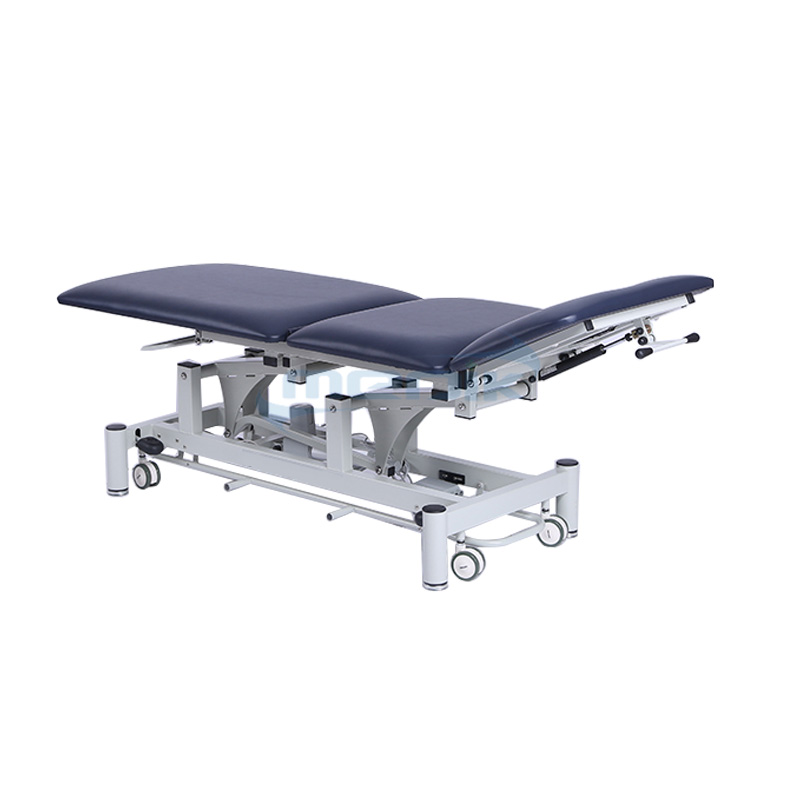

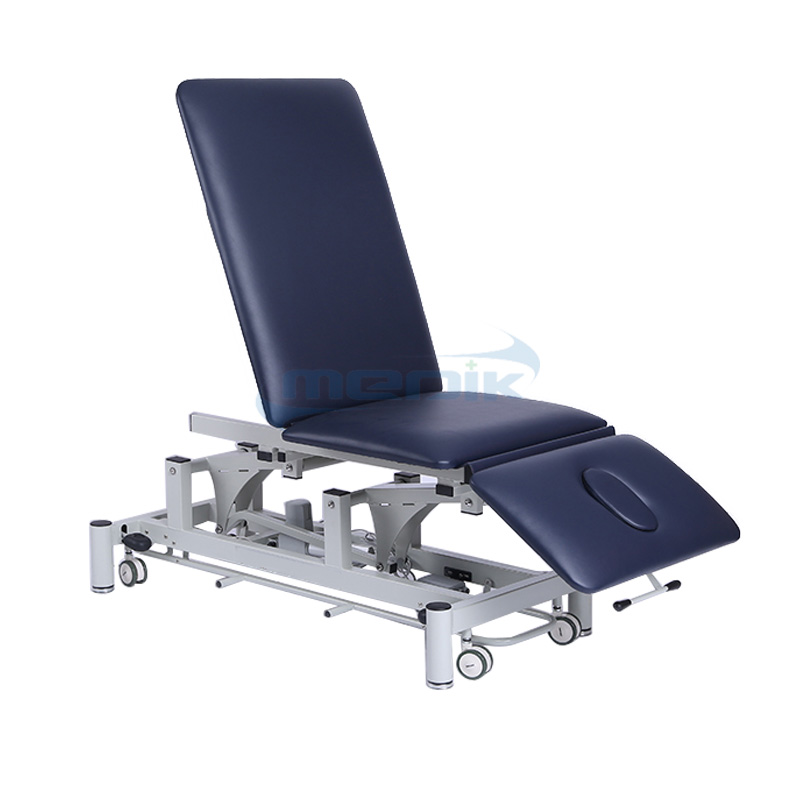

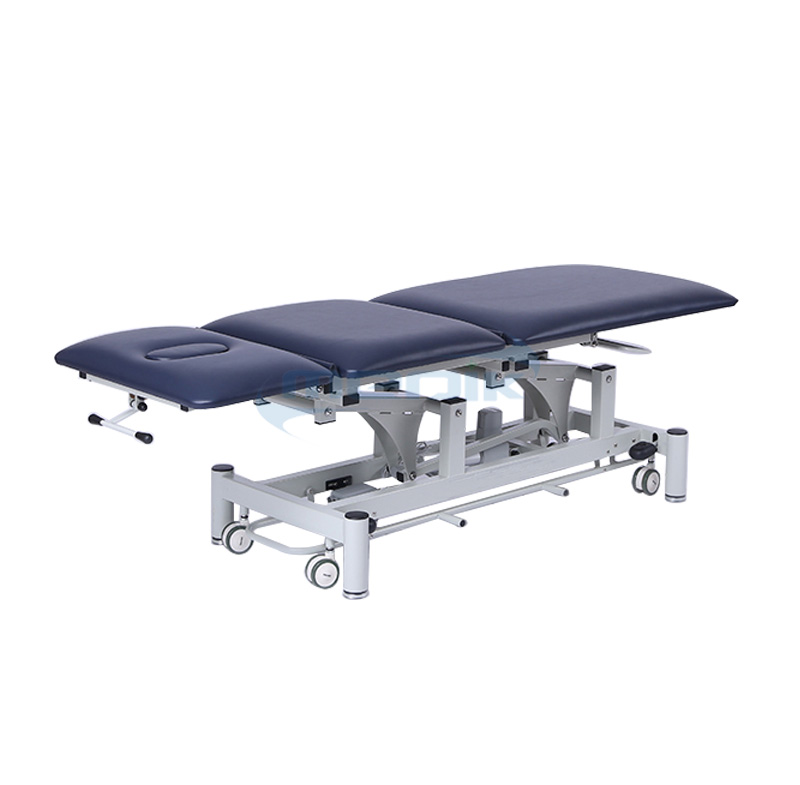

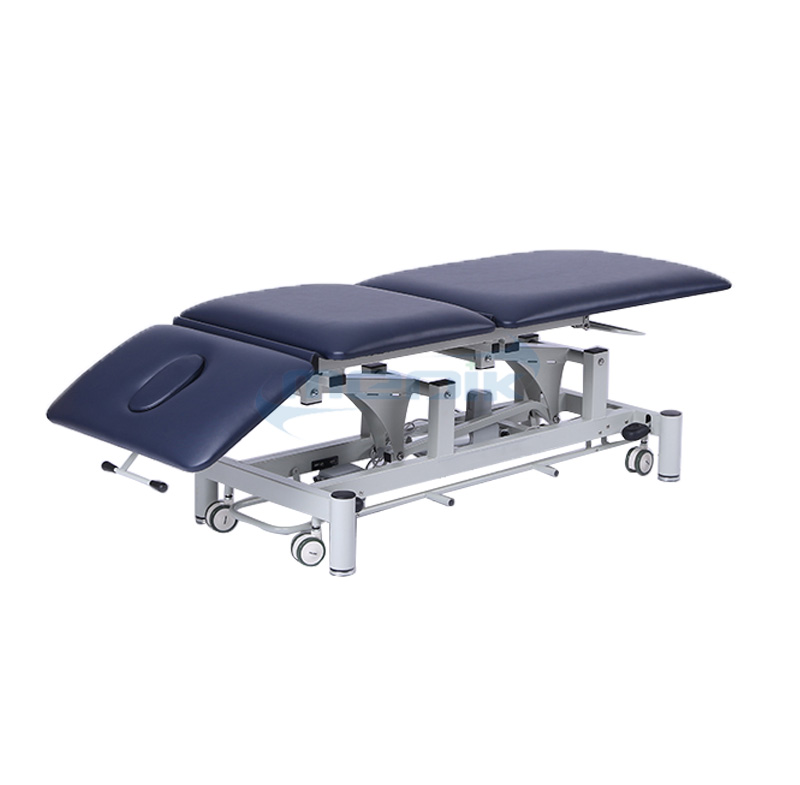

YA-ET302D Electric Medical Treatment Table
Description:
Electric medical treatment table has a very strong table designed to withstand constant heavy use with minimal maintenance.
This Electric medicaltreatment tableaddresses the requirements of a wide range of manual handling issues to benefit both patient and doctor.
规格:
| Dimensions | |
| Overall size | 195 x 66 x (47.5-93)cm |
| Backrest Length | 93cm |
| Middle Section Length | 54cm |
| Head Section Length | 40cm |
| Load capacity | 225kg |
| Foam Thickness | 5cm |
| Foam Density | 36g/m2 |
| 包装 | 186 x 72 x 56cm (Heavy carton) |
| N.W./G.W. | 70/83kgs |
| 20GP/40GP | 36/72pcs |
| Function | |
| Adjustable Height | 47.5cm – 93cm by footbar system |
| Head section adjustable | -45° to +40° by single gas strut |
| Back section adjustable | 0° to +80° by double gas struts |
Standard Specification:
1. One electric motor, standard supports "Timotion" brand for Hi-Lo function.
3. The frame feet (*4) make round shape, avoid to hit people.
4. Add more material ad better designed for some frame parts.
5. Retractable castors 75mm for excellent mobility and safety.
6. Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors.

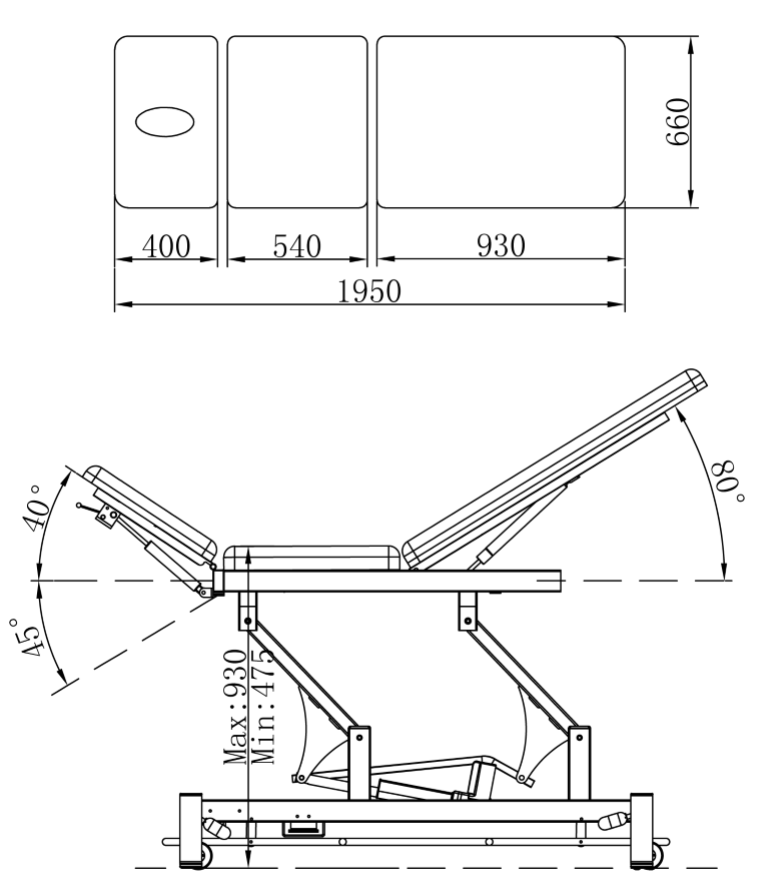

Size picture:
